QA1 3/8" x 3/8" Left Hand High Mis Chromoly Heim Joint

• (1) PCYML6T Chromoly Steel 3/8" (hole) x 3/8"-24 UNF (shaft), Left-Hand Thread, Male Heim Joint
• Misalign Angle: 55 degrees
• Ult. Radial Static Load 10,171 lbs.
• Ball Width: .875" (22.2mm)
• Black Oxide for Corrosion Resistance
• PTFE Lined
• 2-Piece

These black oxide coated rod ends offer superior load ratings over carbon steel two-piece rod ends.

BALL

• 52100 Bearing Steel
• Heat Treated
• Hard Chrome Plated
• Precision Ground

BODY

• Chromoly Steel
• Heat Treated
• Black Oxide Coated
• PTFE Lined

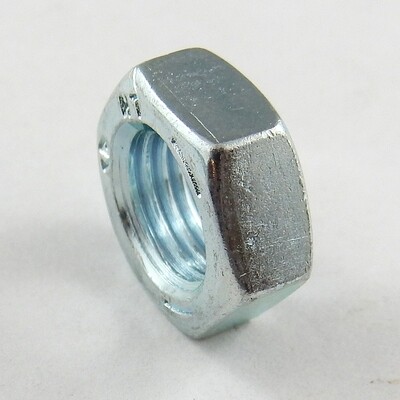

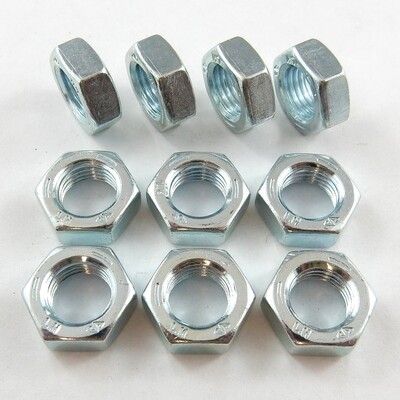

* Jam nut is not included
