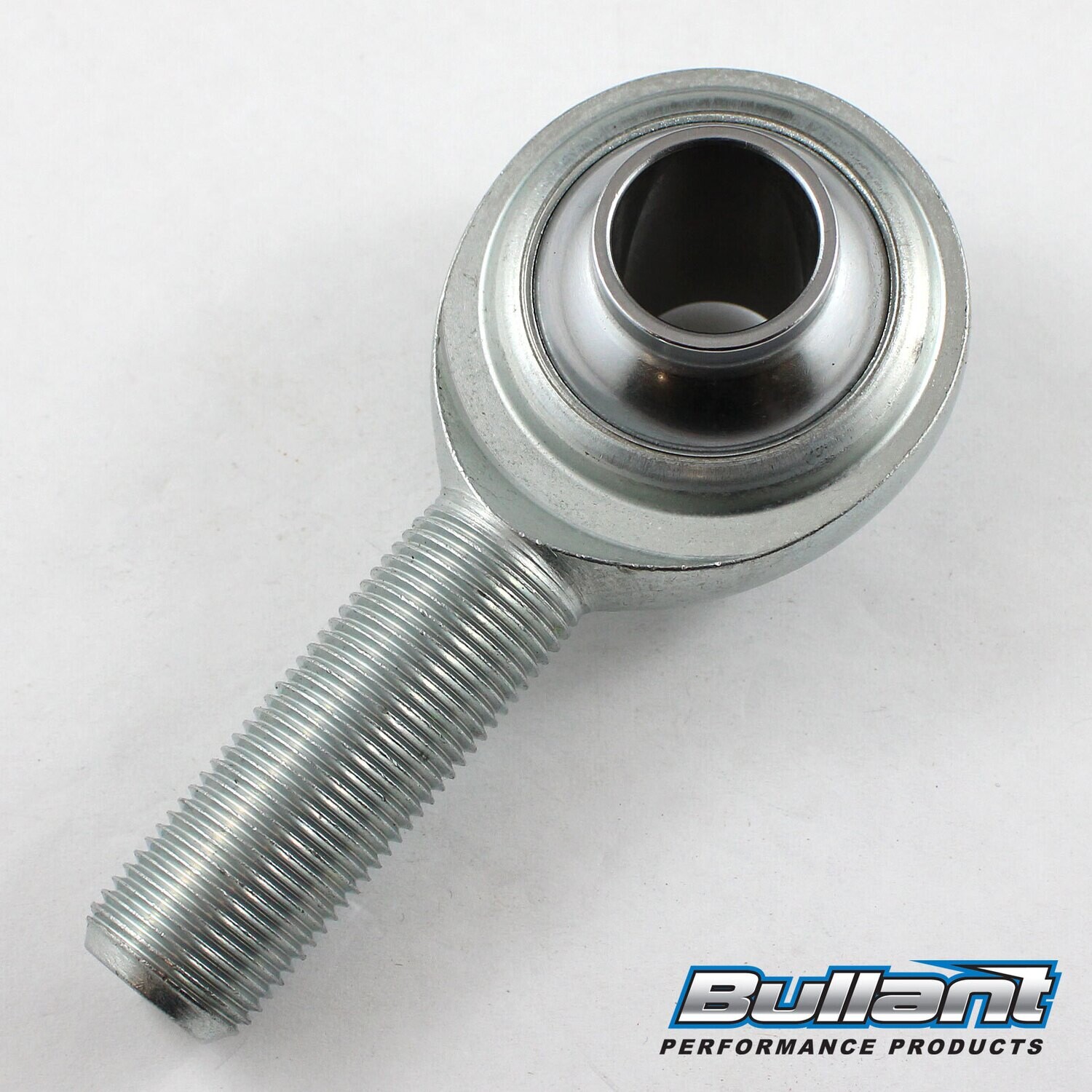

QA1 3/4" x 3/4" Right Hand High Mis Chromoly Heim Joint

RE-PCYMR12T
$40
In stock
1
Product Details

  • QA1 PCYMR12T Chromoly Steel 3/4" (hole) x 3/4"-16 UNF (shaft), Right-Hand Thread, Male High Misaglignment Heim Joint
  • Ball Width: 1.5" (38.1mm)
  • Misalign Angle: 61 degrees
  • Ult. Radial Static Load 29,127 lbs.
  • Silver zinc plated for Corrosion Resistance
  • PTFE Lined
  • 2-Piece

These zinc plated rod ends offer superior load ratings over carbon steel two-piece rod ends.

BALL

  • 52100 Bearing Steel
  • Heat Treated
  • Hard Chrome Plated
  • Precision Ground

BODY

  • Chromoly Steel
  • Heat Treated
  • Zinc Plated
  • PTFE Lined

* Jam nut is not included
