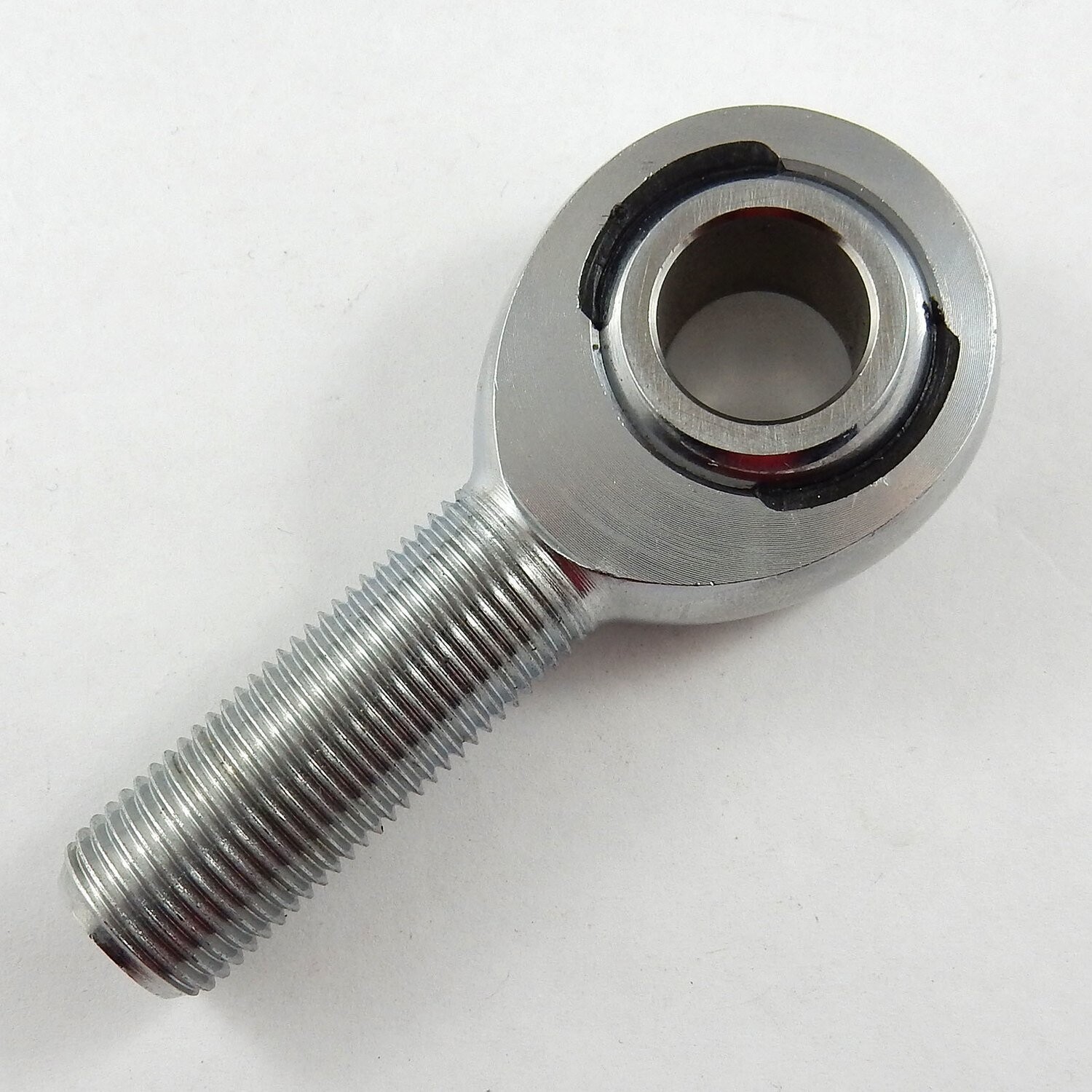

QA1 3/4" x 3/4" RH Steel Rod End

• QA1 EXMR12 Steel 3/4" (hole) x 3/4"-16 UNF (shaft), Right-Hand Thread, Male Heim Joint
• Ult Radial Static Load: 16565 lbs
• Misalign Angle: 14 degrees
• Ball Width: .875" (22.25mm)

QA1 is the exclusive provider of carbon steel loaded slot rod ends. QA1’s EXM Carbon Steel Series male rod ends have increased cross-sectional thickness and are completely self-sealing and self-lubricating. The Nylon/PTFE injection molded race won’t pound out like other styles and keeps dirt and debris out for excellent performance.

BALL

• 52100 Bearing Steel
• Heat Treated
• Hard Chrome Plated
• Precision Ground

RACE

• Teflon®/Kevlar®
• Self-Lubricating
• Self-Sealing

BODY

• Carbon Steel (Alloy Steel – Mfr.’s Option)
• Protective Coated for Corrosion Resistance

* Jam nut is not included
