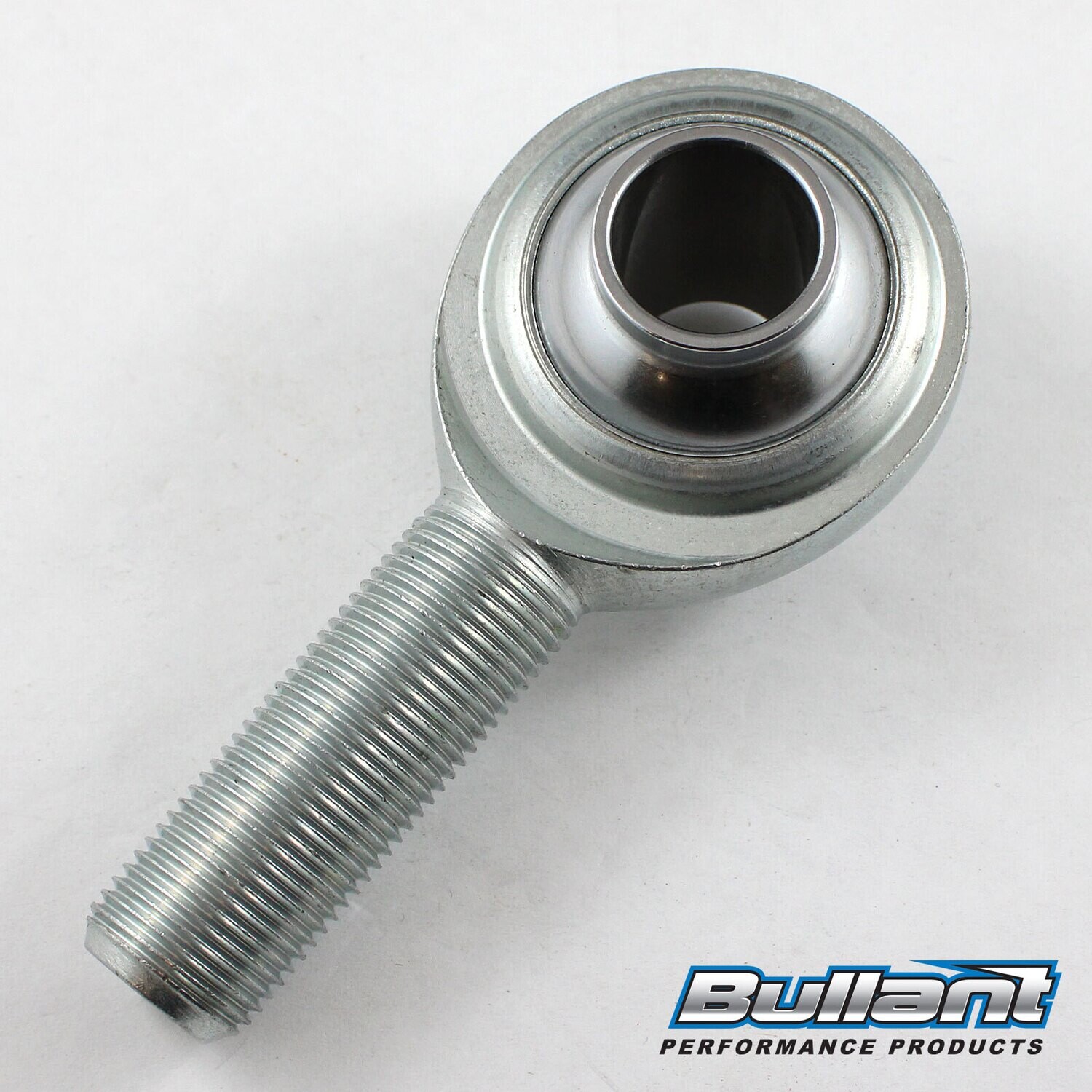

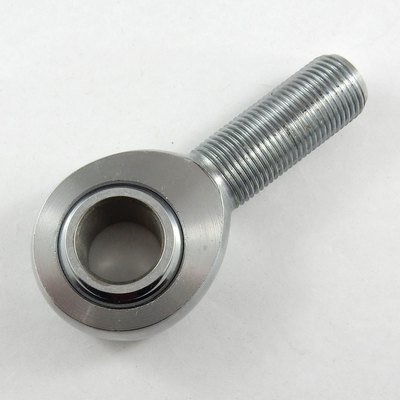

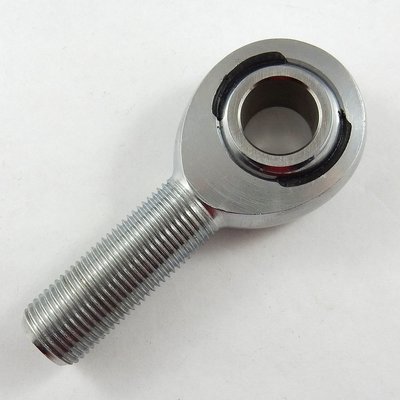

QA1 3/4" x 3/4" Left Hand High Mis Chromoly Heim Joint

• QA1 PCYML12T Chromoly Steel 3/4" (hole) x 3/4"-16 UNF (shaft), Left-Hand Thread, Male High Misaglignment Heim Joint
• Ball Width: 1.5" (38.1mm)
• Misalign Angle: 61 degrees
• Ult. Radial Static Load 29,127 lbs.
• Zinc Plated for Corrosion Resistance
• PTFE Lined
• 2-Piece

These zinc plated rod ends offer superior load ratings over carbon steel two-piece rod ends.

BALL

• 52100 Bearing Steel
• Heat Treated
• Hard Chrome Plated
• Precision Ground

BODY

• Chromoly Steel
• Heat Treated
• Zinc Plated
• PTFE Lined

* Jam nut is not included
