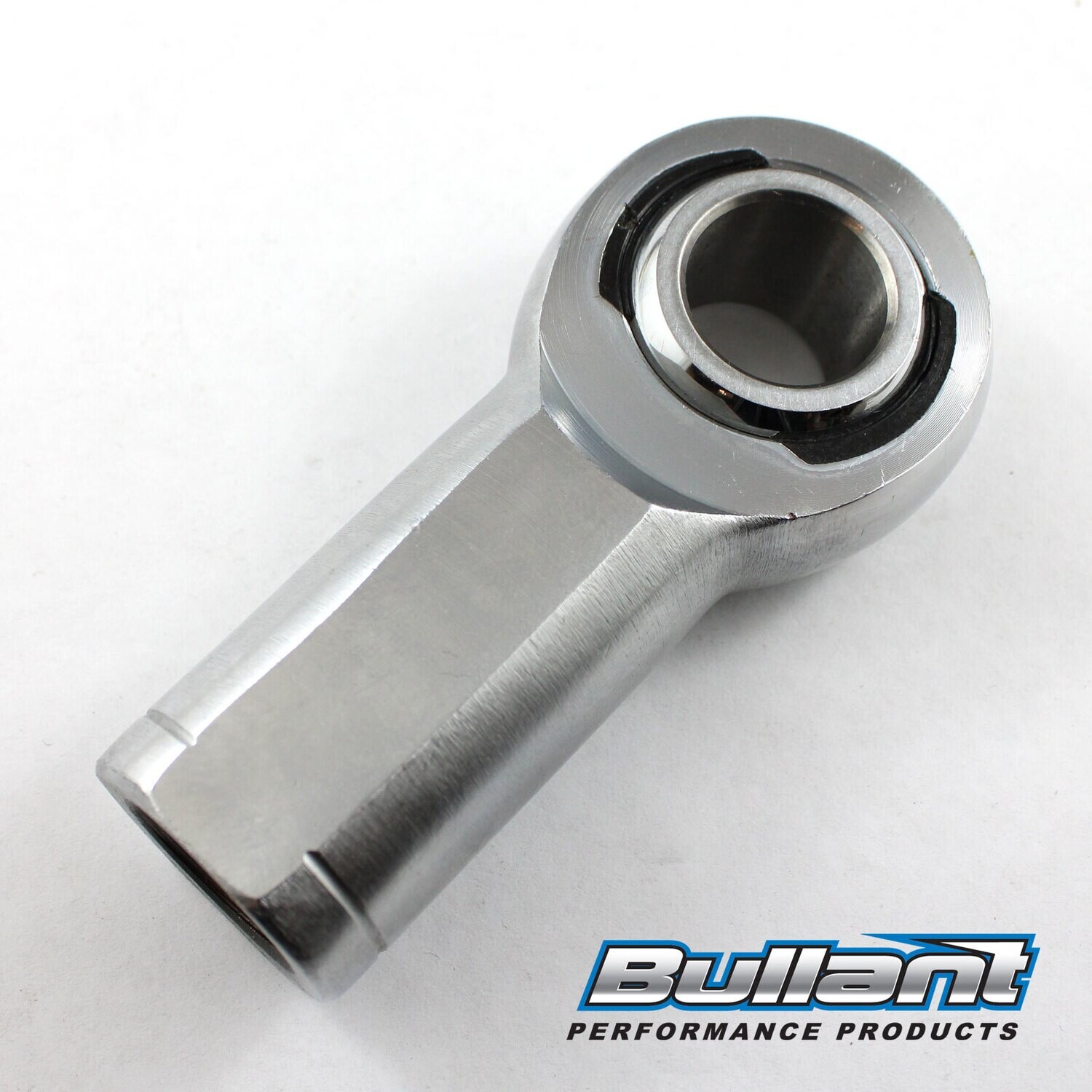

QA1 3/4" x 3/4" Left Hand Female Chromoly Rod End

In stock
Product Details

  • QA1 XFL12 Chromoly 3/4" (hole) x 3/4"-16 UNF Left-Hand Internal Thread, Female Heim Joint
  • Teflon Lined - Self Sealing and Lubricating
  • Ult Radial Static Load: 28,081 lbs
  • Misalign Angle: 14 degrees
  • Ball Width: .875" (22.2mm)

For the ultimate in performance rod ends, look no further than QA1’s XM Chromoly Steel Series female rod ends. These heavy duty rod ends are commonly used on 4-link and ladder bars for their strength and durability. XM Series rod ends are completely self-sealing and self-lubricating because of their Nylon/PTFE injection molded race that keeps dirt and debris out.


  • 52100 Bearing Steel
  • Heat Treated
  • Hard Chrome Plated
  • Precision Ground


  • Teflon®/Kevlar®
  • Self-Lubricating
  • Self-Sealing


  • Chromoly Steel
  • Heat Treated
  • Protective Coated for Corrosion Resistance

* Jam nut is not included
