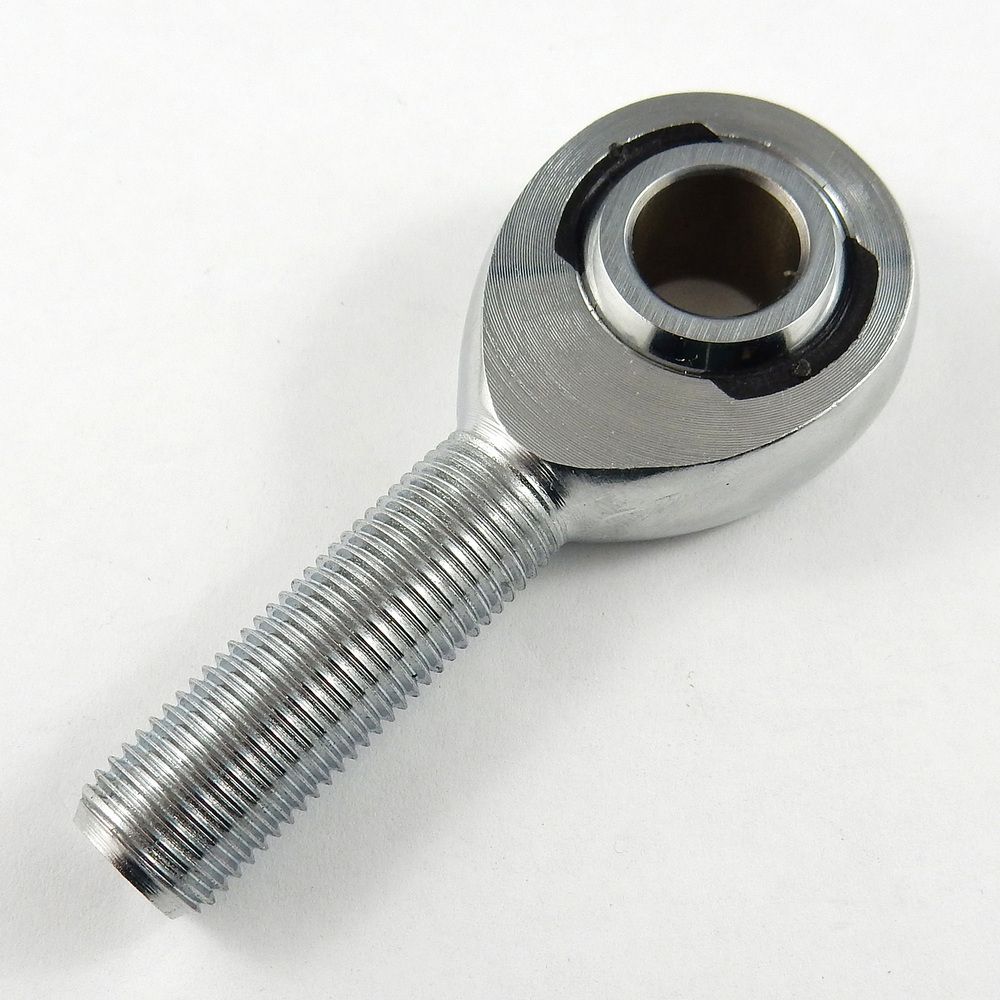

QA1 1/2" x 1/2" Left Hand Steel Rod End

• QA1 EXML8 Steel 1/2" (hole) x 1/2"-20 UNF (shaft), Left-Hand Thread, Male Heim Joint
• Ult Radial Static Load: 10001 lbs
• Misalign Angle: 12 degrees

QA1 is the exclusive provider of carbon steel loaded slot rod ends. QA1’s EXM Carbon Steel Series male rod ends have increased cross-sectional thickness and are completely self-sealing and self-lubricating. The Nylon/PTFE injection molded race won’t pound out like other styles and keeps dirt and debris out for excellent performance.

BALL

• 52100 Bearing Steel
• Heat Treated
• Hard Chrome Plated
• Precision Ground

RACE

• Teflon®/Kevlar®
• Self-Lubricating
• Self-Sealing

BODY

• Carbon Steel (Alloy Steel – Mfr.’s Option)
• Protective Coated for Corrosion Resistance

* Jam nut is not included
