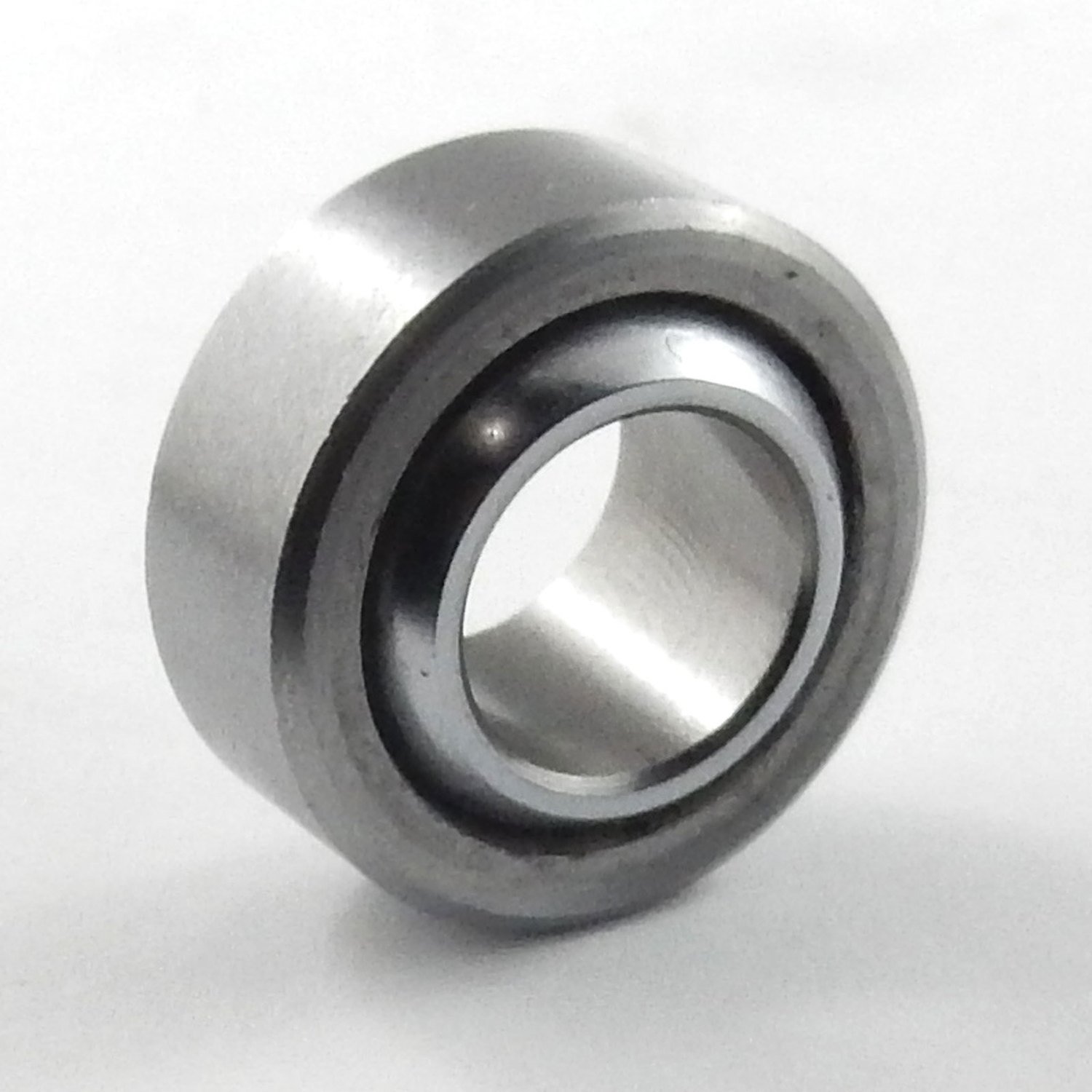

QA1 1/2" Bore Stainless Steel Teflon Lined Spherical Bearing

• QA1 WPB8T Steel 1/2" (hole) Stainless Steel Teflon Lined Spherical Bearing Rose Joint
• Ult Radial Static Load: 21,400 lbs
• Misalign Angle: 9 degrees
• Outside Diameter: 1" (25.4mm)
• Race Width: 0.505 (12.8mm)
• Ball Width: 0.625" (15.9mm)

QA1’s WPB-T Series stainless steel wide spherical bearings are the perfect selection for precision applications. Each bearing is made from stainless steel with a self-lubricating PTFE liner and has tighter tolerances than traditional spherical bearings.

BALL

• 440C Stainless Steel
• Heat Treated
• Hard Chrome Plated
• Precision Ground

RACE

• PTFE
• Self-Lubricating
• Self-Sealing

BODY

• Stainless Steel
• Heat Treated
