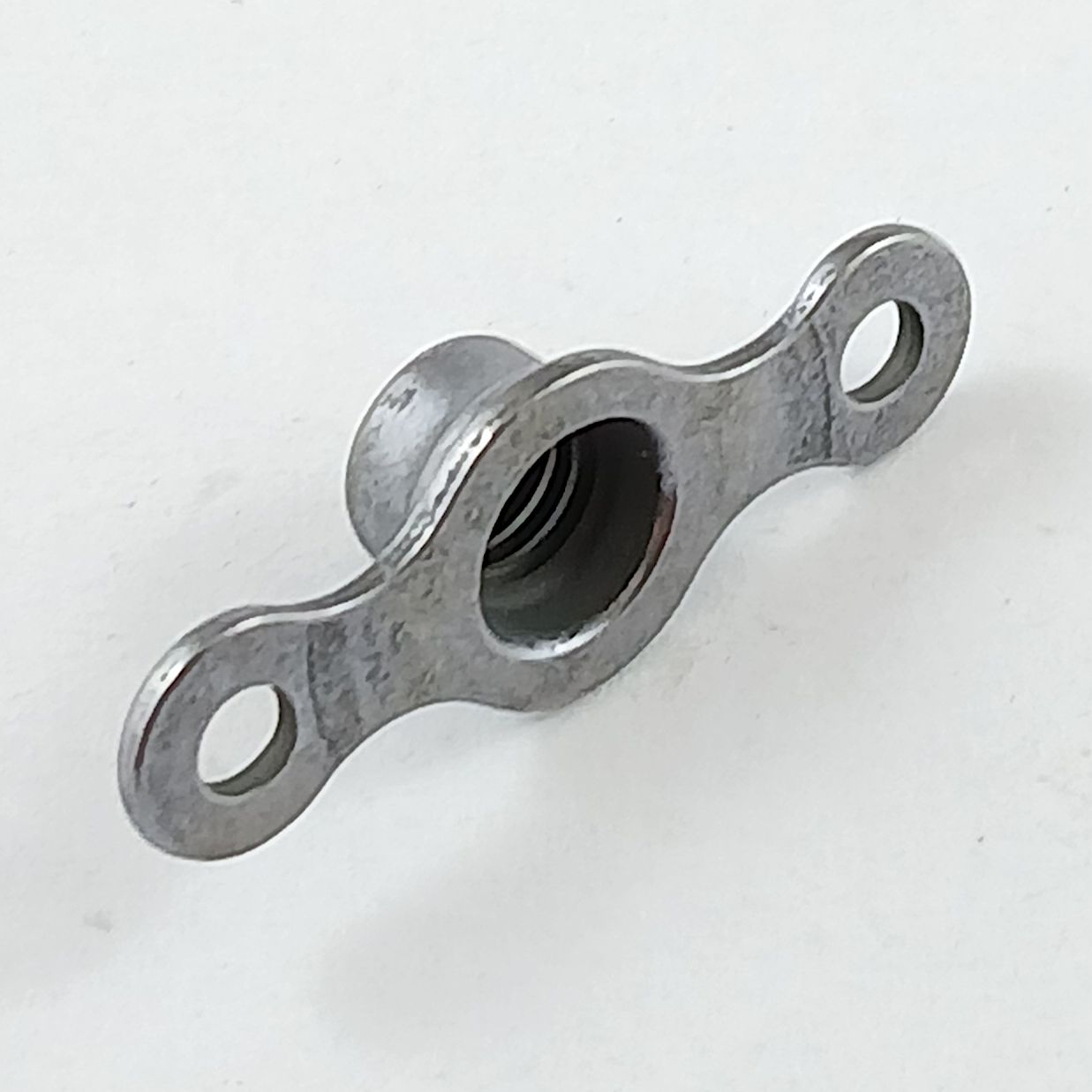

M5 x 0.80 Anchor Nut - 2 Lug

Anchor nuts (also known as Nut Plates) are designed for blind mounted applications where it is impractical to use hex nuts or where it is desirable to have an attached nut for ease of maintenance.

• M5 x 0.80 Right-Hand Thread Steel Anchor Nut
• All Metal Self Locking Nut
• Material: DIN 1.7220.3 – 25CrMo4 – AISI 4135/4137
• Hardness: max. 43 HRC
• 19mm Between Rivet Hole Centres
• Mounting Hole Diameter: 2.5mm
• Nut Height: 5mm
• Class: 900 MPa tensile strength
• Max temperature: 235 °C = 455 °F
• Surface: cadmium-plated + MoS2 low friction coating
