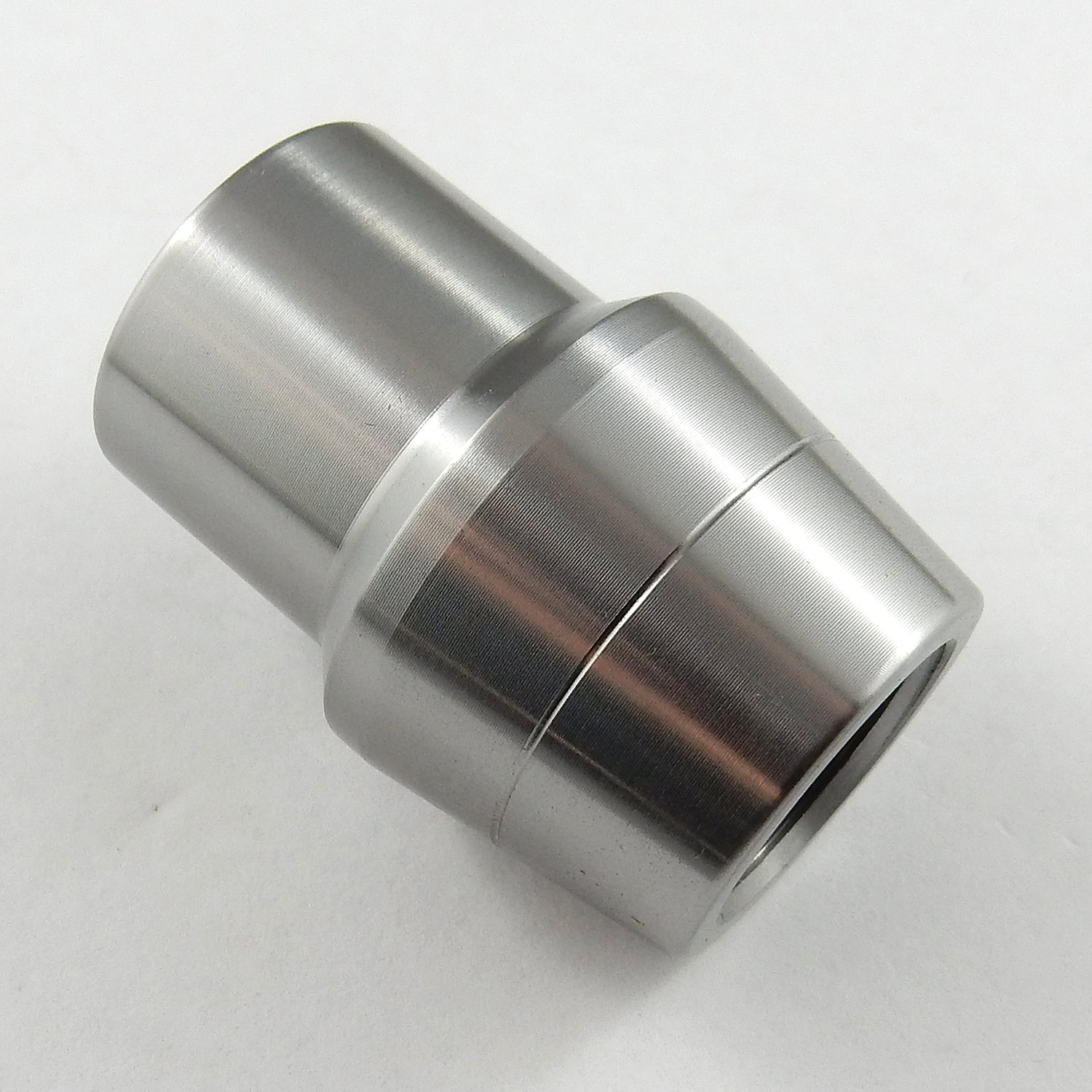

Designed for use with the following tubing sizes: 1-1/4" (31.8mm) OD x 0.065" (1.6mm) wall thickness (OD of the section that locates inside the tube is 28.3mm) 1-1/4" (31.8mm) OD x 0.095" (2.4mm) wall thickness (OD of the section that locates inside the tube is 26.6mm) 1-1/4" (31.8mm) OD x 0.120" (3.0mm) wall thickness (OD of the section that locates inside the tube is 25.4mm)
Ideal for welding into tubes to manufacture 4 link bars, ladder bars, wishbones, castor arms, compression struts, watts linkages etc.
Mushroom head shape makes it easy to butt up against steel tubing for welding
Save time and weight by using these in place of drilling and tapping out solid steel
CNC precision machined
Tapered head gives proffessional appearance to completed bars
Made from Carbon Steel 1045 (C45)
Welding should be undertaken by a qualified professional
