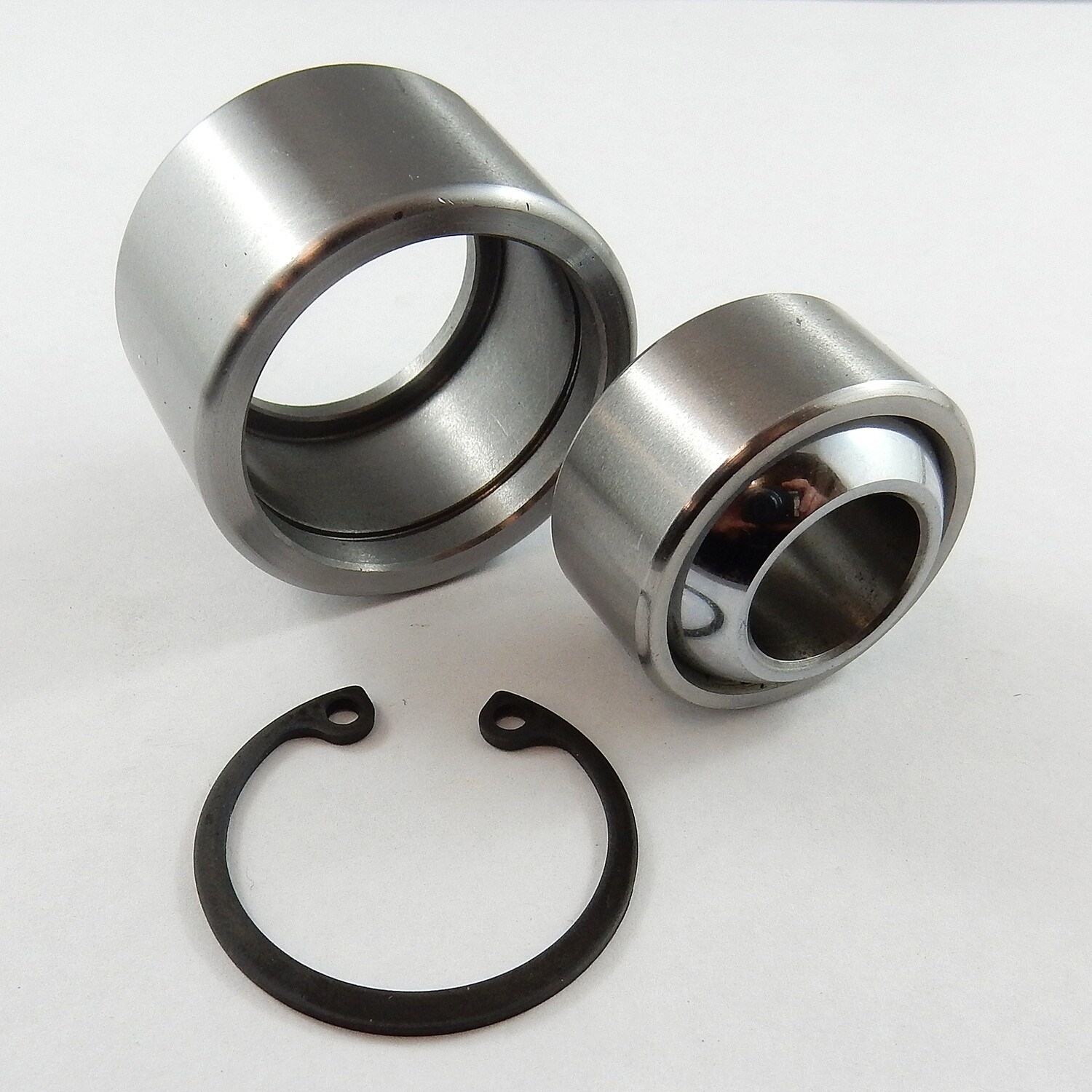

16mm Bore Spherical Bearing, Cup & Circlip Kit
SKU GEK16T+CUP+CIRC
$45
Price incl. GST (10%) $4.09
Estimated delivery time
Pickup: today, 09:00 AM–02:30 PM
In stock: 1 available
1
Product Details
- (1) GEK16T Steel 16mm (hole) Spherical Bearing Rose Joint
- (1) GEK16 Sphercial Bearing Housing/Cup
- (1) Steel Retaining Circlip
These Teflon Lined Series Bearings have 3 components; the ball, the liner and the outer race. The ball is inserted into the body and the body is then swaged around the ball to lock it in and it is then loosened to allow it to move. The body is made from Carbon Steel. These bearings are ideal for use in areas which require a tight fitted ball. These bearings are ideal for use in areas where the joint is constantly in motion as the liner insures the ball moves freely without any knocking or play being induced. These are commonly used in motorsport and on industrial equipment.
Ball
- 52100 Bearing Steel
- Heat Treated
- Hard Chrome Plated
- Precision Ground
Race
- Teflon®/Kevlar®
- Self-Lubricating
- Self-Sealing
Body
- Carbon Steel
- Protective Coated for Corrosion Resistance
Bearing Housing/Cup Specifications:
- Mild Steel (suitable for welding)
- Protective Zinc Coated for Corrosion Resistance
- Fits GEK16T Spherical Bearings
- Perfect for general forms of Motorsport and kit cars
- Outside Diameter: 40mm
- Inside Diameter: 32mm
- Height: 25mm
