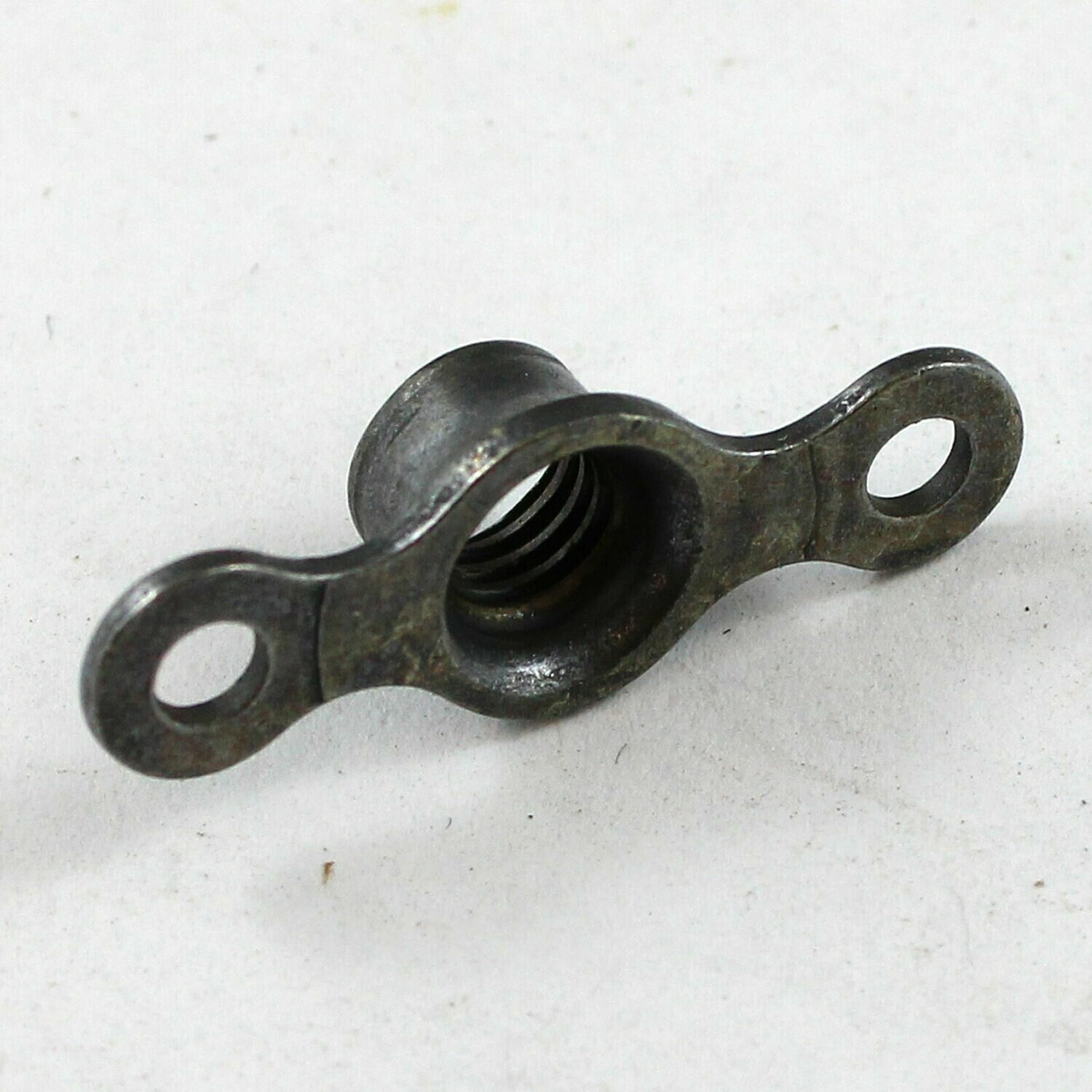

10-32 UNF Anchor Nut - 2 Lug

Anchor nuts (also known as Nut Plates) are designed for blind mounted applications where it is impractical to use hex nuts or where it is desirable to have an attached nut for ease of maintenance.

• 10-32 UNF Right-Hand Thread Steel Anchor Nut (MS21047L3)
• All Metal Self Locking Nut
• 0.688" (17.5mm) Between Rivet Hole Centres
• Nut Height: 0.209" (5.3mm)
• Attach with 3/32" rivets
• Axial tensile strength min.: 2460 lbs
• Max temperature: 232 °C = 450 °F
