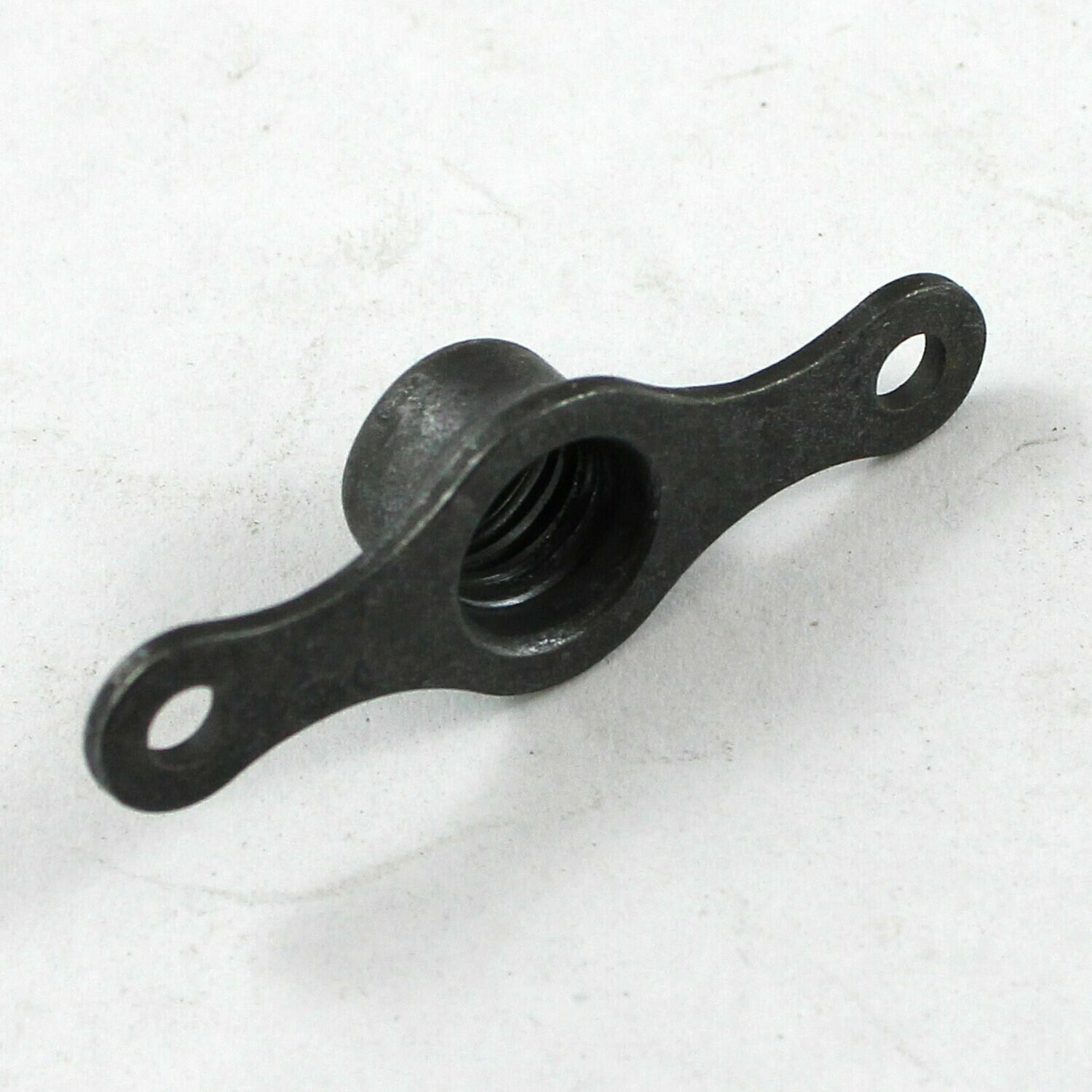

1/4" UNF Anchor Nut - 2 Lug

Anchor nuts (also known as Nut Plates) are designed for blind mounted applications where it is impractical to use hex nuts or where it is desirable to have an attached nut for ease of maintenance.

• 1/4"-28 UNF Right-Hand Thread Steel Anchor Nut (MS21047L4)
• All Metal Self Locking Nut
• Material: DIN 1.7220.3 – 25CrMo4 – AISI 4135/4137
• Hardness: max. 43 HRC
• 1" (25.4mm) Between Rivet Hole Centres
• Nut Height: 0.241" (6.1mm)
• Attach with 3/32" Rivets
• Axial tensile strength min.: 4580 lbs
• Max temperature: 235 °C = 455 °F
• Surface: cadmium-plated + MoS2 low friction coating
